Tính năng mới của phần mềm CSi Plant v7

PIPING DESIGN

Piping design has been implemented for the following ASME codes:

B31.1-2020

B31.3-2020

B31.4-2019

STRUCTURAL MODEL

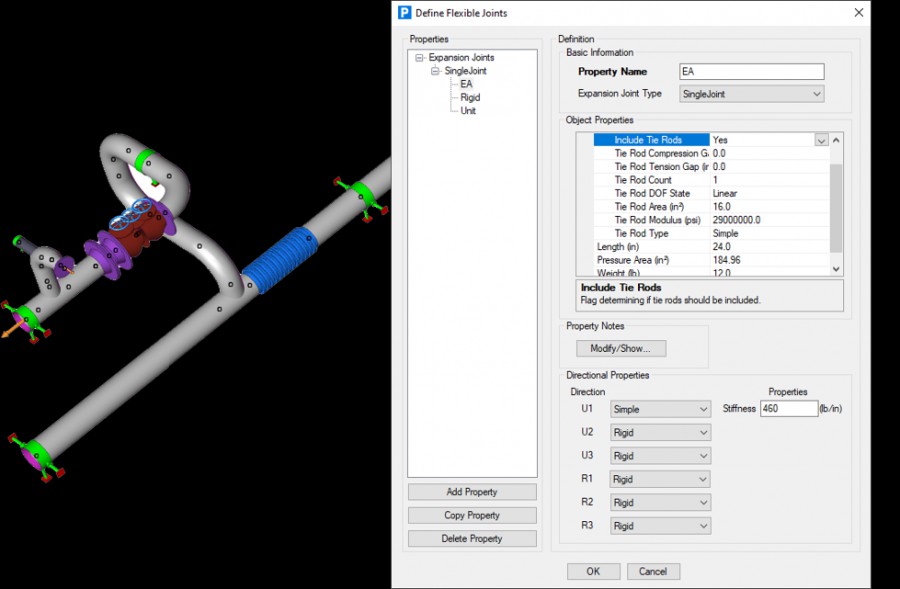

Expansion joints in pipelines can now be modeled. Types include single, hinge, and gimbal.

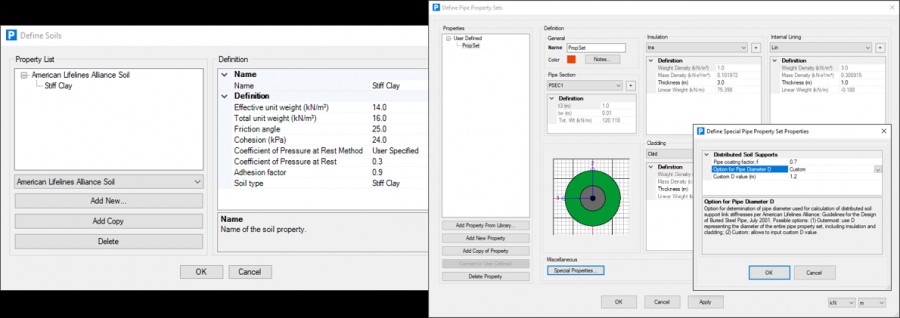

Distributed soil supports can now be modeled along pipes that follow the recommendations by American Lifelines Alliance.

LOADING

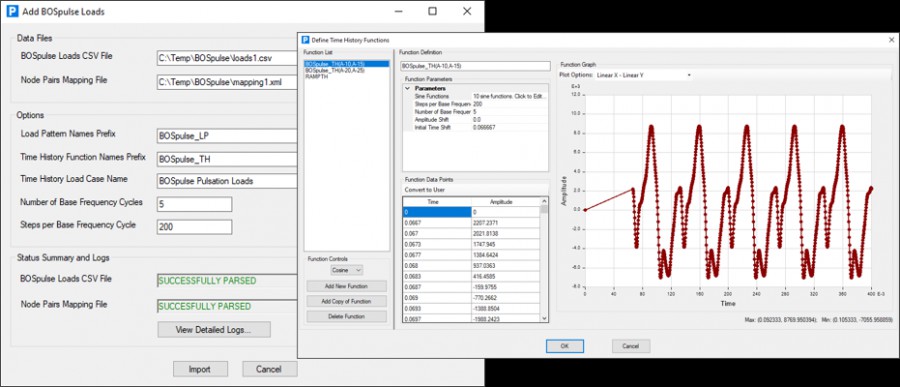

Pulsation loads due to reciprocating pumps and compressors can now imported BOSpulse as a time history load case.

ANALYSIS

Speed improvements have been made for nonlinear analyses that involve a large number of load patterns.

GRAPHICS

The time to create animations has been significantly decreased.

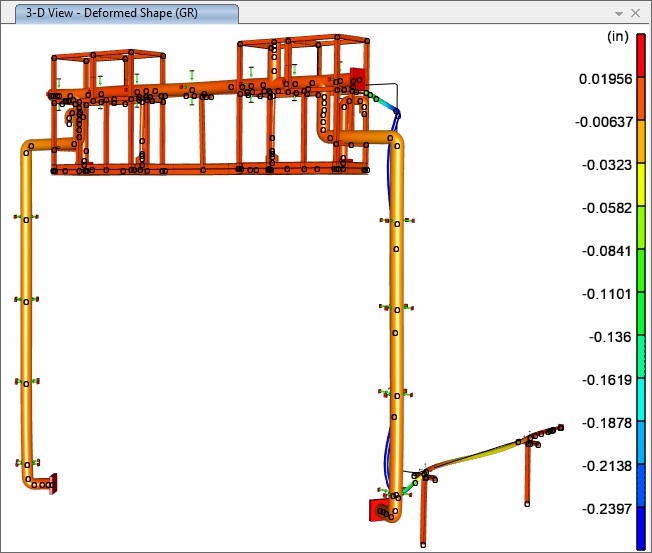

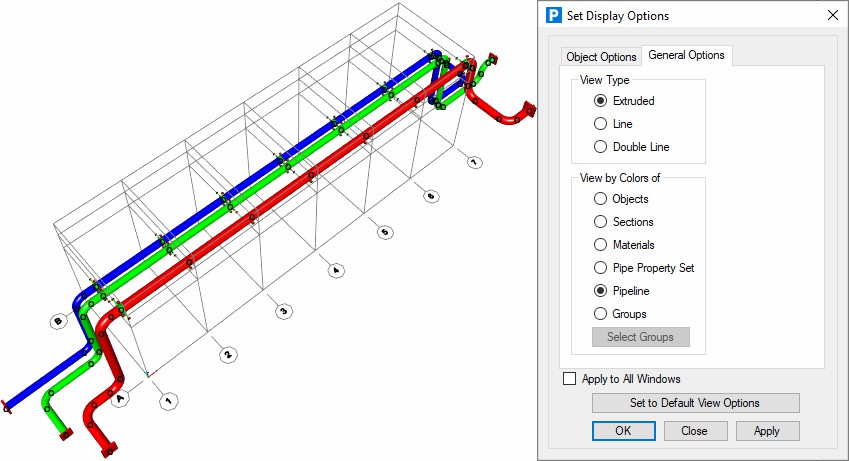

Model objects can now be displayed by color based on object type, section property, material, pipe property set, pipeline, and group.

DRAFTING

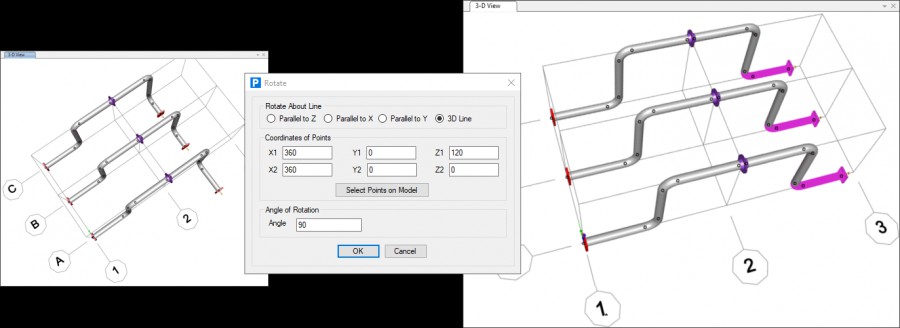

A new command has been added to rotate model objects about any axis.

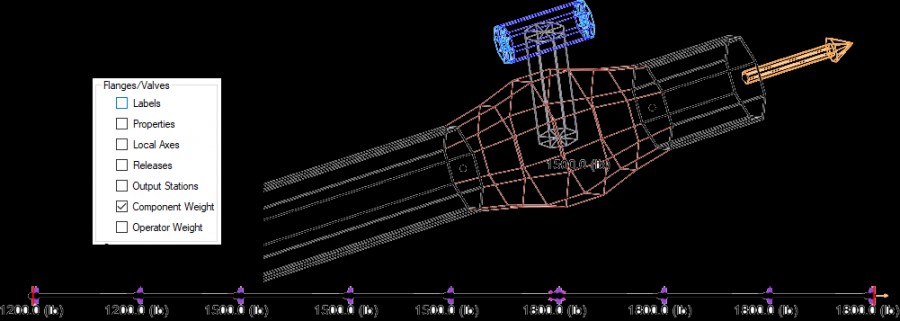

Valves assigned with concentric and eccentric component weights are now distinguished graphically.

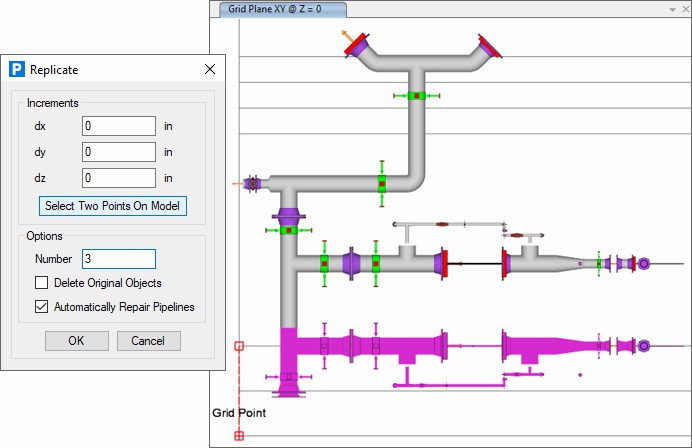

Replicate and mirror commands now include the option to select points on the model for determining the offset distance.

OUTPUT AND DISPLAY

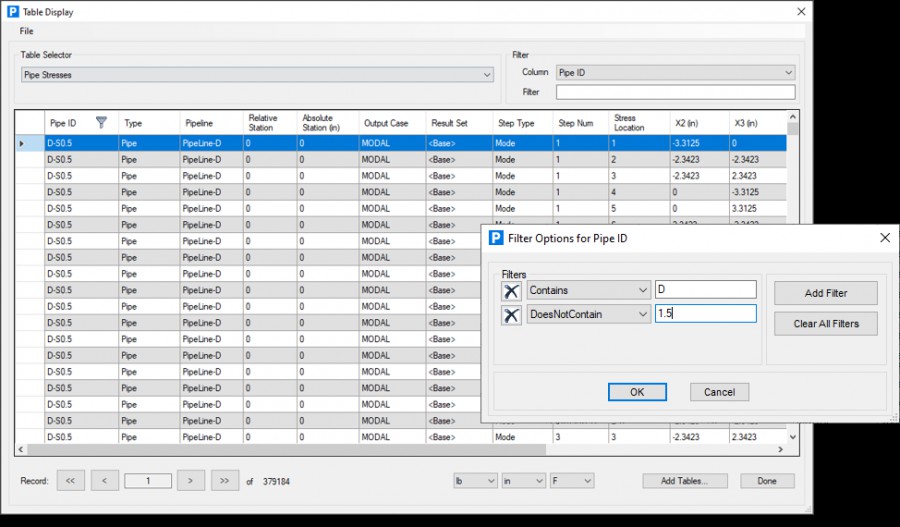

Custom filters are now available for non-numeric columns in the display tables.
